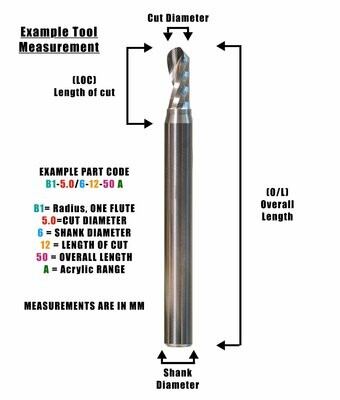

6mm diameter, 6mm shank, 8mm length of cut. 50mm overall length
This tool is designed to cut Mineral Core ACM. Extended tool life with PCD diamond.
This tool will need to be manually height set as it is a non conductive tip.

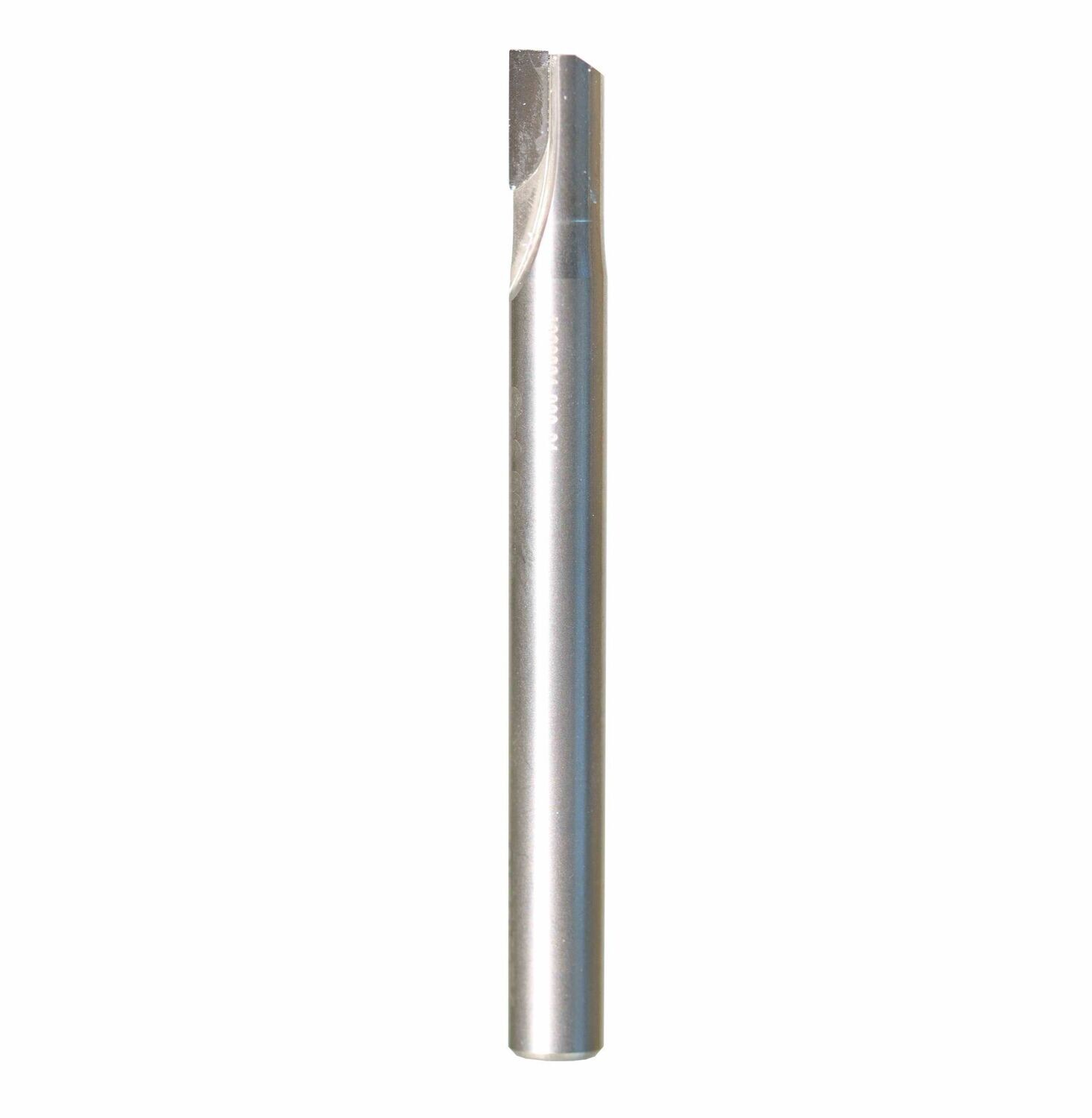

Part number S1-6.0/6-8-50 PCD Mineral Core
Min rpm 18,000
Always check the tool diameter size prior to committing to a production run.
